Most overline arches span at least two tracks. Single track
arches may be used if there is little headroom, though use of an iron deck was
more usual in such cases.
|

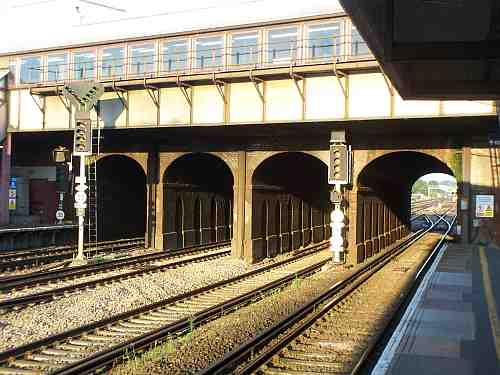

Bridge 242, Tonbridge, photographed on 18th August 2007.
photograph by Gregory Beecroft
|
Bridge 242, Tonbridge.
photograph by Gregory Beecroft
|
|
Probably the best-known single track arch bridge on the Southern is Railway
Approach bridge at Tonbridge station. There are four main arches, plus a fifth,
smaller one on the north side, used by a footpath. The Up Passenger Loop is
spanned by a concrete deck. A similar bridge used to be at Ashford.
|
Battersea Park Road bridge, Stewarts Lane Junction, photographed
on 1st June 2008.
photograph by Gregory Beecroft
|
A bridge rather like that at Tonbridge carried Battersea Park Road over the
Brighton lines at Stewarts Lane. Now there is just one track under this bridge,
the Battersea Reversible Line. Battersea Park Road crosses the Chatham Lines on
a concrete deck bridge.

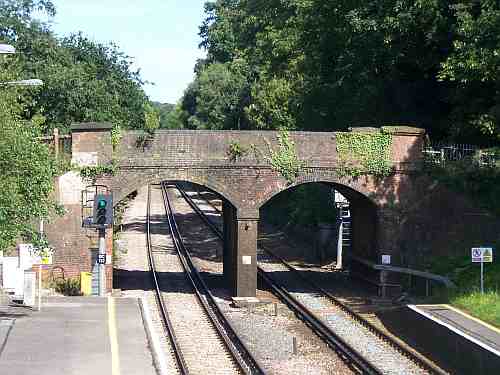

Hinton Wood Avenue bridge, Hinton Admiral, photographed on 22nd
July 2007.
photograph by Gregory Beecroft
|
|
There is a series of single track arch bridges between Brockenhurst and
Christchurch. This is Hinton Wood Avenue bridge at Hinton Admiral. There are
some similar bridges on the Netley line.
|
Beechey Road bridge, Bournemouth, photographed on 18th October 2008.
photograph by Gregory Beecroft
|
Beechey Road bridge, Bournemouth.
photograph by Gregory Beecroft
|
|
Beechey Road bridge, at the country end of Bournemouth station, spanned not
just the main line, but tracks into the engine shed. It had five arches in
total, but only three remain in use. The spandrels and parapets are decorated
with panelling.
|
Canal Aqueduct, Pirbright, photographed on 15th March 2009.
photograph by Gregory Beecroft
|
Fulwell Tunnel, photographed on 27th October 2007.
photograph by Gregory Beecroft
|
|
The aqueduct carrying the Basingstoke Canal over the South Western main line
between Pirbright Junction and Farnborough has a single arch for each track. A
somewhat similar, but more ornate, structure carries Wellington Road over the
railway at Fulwell. This is treated as a tunnel for operating purposes, as the
canal aqueduct once was.
|
Bridge Road bridge, Wallington has four very flat elliptical
arches, photographed on 11th August 2007.
photograph by Gregory Beecroft
|
|
