LBSCR K class 2-6-0

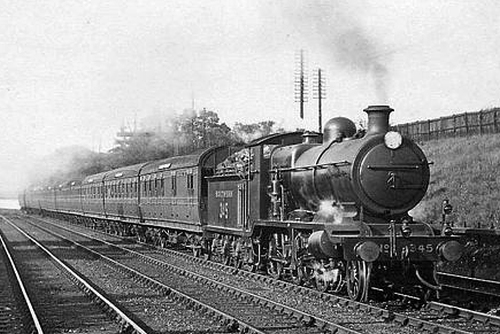

photograph: David Lord collection

Nº B345, one of the 1916-built batch of locos, in charge of the 6:8 p.m. London Bridge - Brighton train passing Honor Oak Park in early SR days

LB Billinton's very handsome "K" Class mogul was one of the most successful LBSC designs ever produced. These locos, though following "Brighton" tradition in styling, were quite innovative for the LBSC, firstly with the wheel arrangement (they were the first 2-6-0s seen on Brighton metals), with the Belpaire firebox (the first time one was fitted to a Brighton locomotive), and then the last two engines were the first Brighton locomotives to be fitted with a top feed.

Built to eliminate double-heading of C2X class 0-6-0s they had to have good acceleration for working heavy goods trains in the London area, thereby minimising delays to the suburban services. Nos 337 and 338 were built in 1913, 339-341 in 1914 and 342-346 in 1916. Following the success of the top feed arrangement on Nos 345 and 346, this was fitted to the earlier locomotives as and when they were required to go through the workshops. More were required but wartime restrictions led to a clamp down on further building so it wasn't until Government control was withdrawn in 1919 that more could be built. Ordered that same year, Nos 347-350 appeared in 1920, followed by the last of the class, Nos 351-353 in 1921. At one time a 2-6-2 tank version, at first designated Class F*, then later Class K2, was proposed, but the final batch of tender locos was built instead**.

As with the C2X class some of the locomotives were fited with a second dome housing the top feed. This raised the clacks and allowed a deeper distributing tray which prevented suspended matter in the water from entering the boiler.

Designed as a Heavy Goods Locomotive, the class spent much of its early years working munitions trains to Newhaven. In order to accomodate them there a brand new, 60 foot, ball-bearing turntable was built at Brighton Works and installed at Newhaven in 1917.

Among other noted innovations in 1921 Nº351 was fitted with a Lewis draught regulator, which required the smokebox being extended, and, for a time, a ship-like plain oval chimney. Also in 1921 Nº340 was fitted with a Worthington feedwater heater and pump (which the Southern Railway removed in 1926). Nº347 differed from her sisters in that she was fitted with 'pop' safety valves.

In Southern Railway days Nº2342 was fitted with electric lamps, the first coal-fired locomotive apart from the Bulleid Pacifics to be so equipped. The generator was fitted to the right hand cab front behind the Westinghouse pump. This equipment was subsequently removed by British Railways in 1951.

  * One source suggests the tanks were to be Class M.
** One source suggests this happened in 1916 and that it was the Government who requested that tender engines be built.

Click on the thumbnails for a larger image. Clicking again will close the window.
If there is a larger version, clicking on the 'F' key will display it.

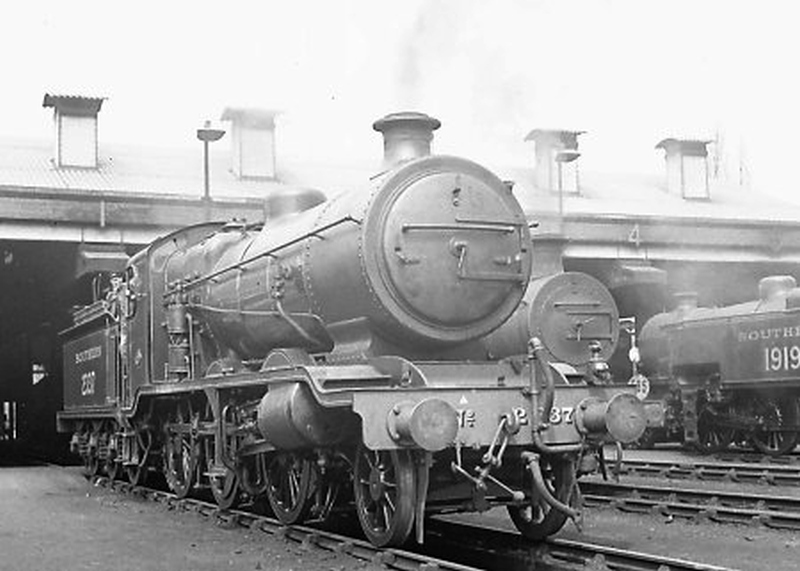

  • 2337
    On shed
    Nº2337 in lined Southern green livery, on shed.
    Photograph: Mike Morant collection.

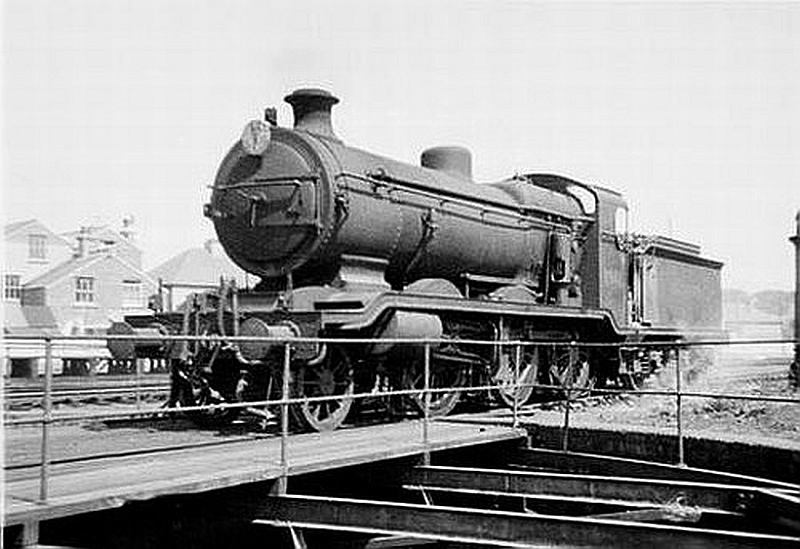

  • 2342
    On shed
    A shiny Nº 2342 on shed during Southern Railway days prior to the fitting of electric lamps.
    Photograph: Mike Morant collection.

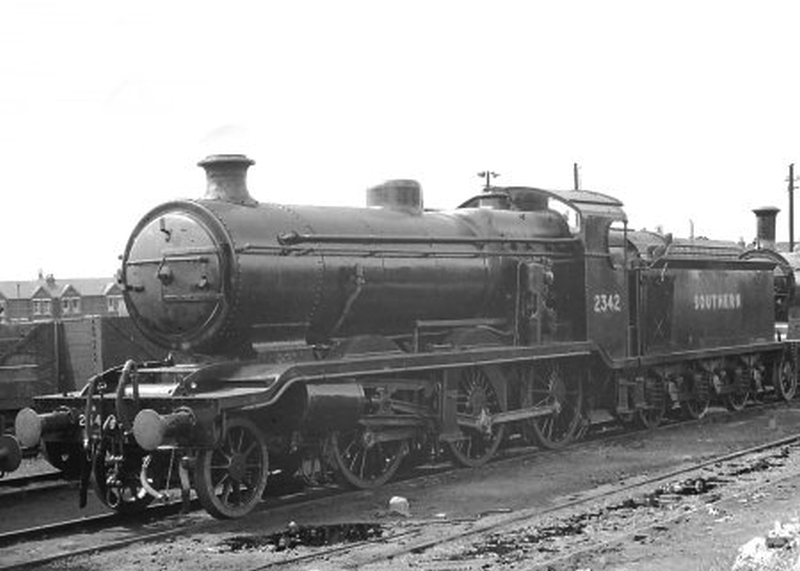

  • 2342
    Bognor
    Nº2342 again, photographed at Bognor loco shed on 27th May 1950 and yet to receive her BR number plate and branding. The electric lamps referred to in the text may be plainly seen.
    Photograph by Les Darbyshire.

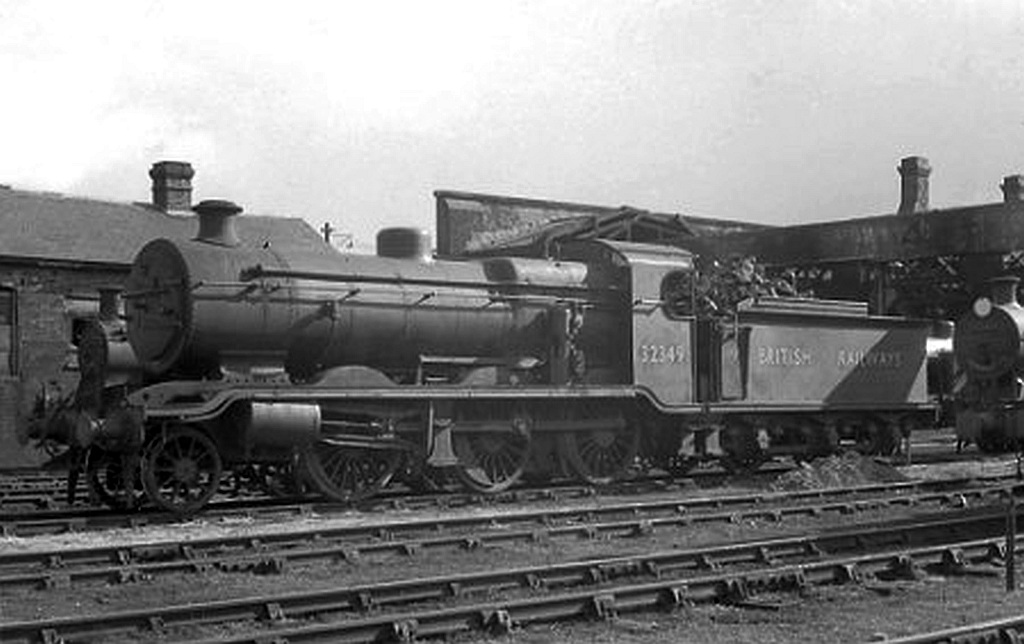

  • 32349
    Early BR
    Nº32349 in early British Railways livery.
    Photograph: Mike Morant collection.

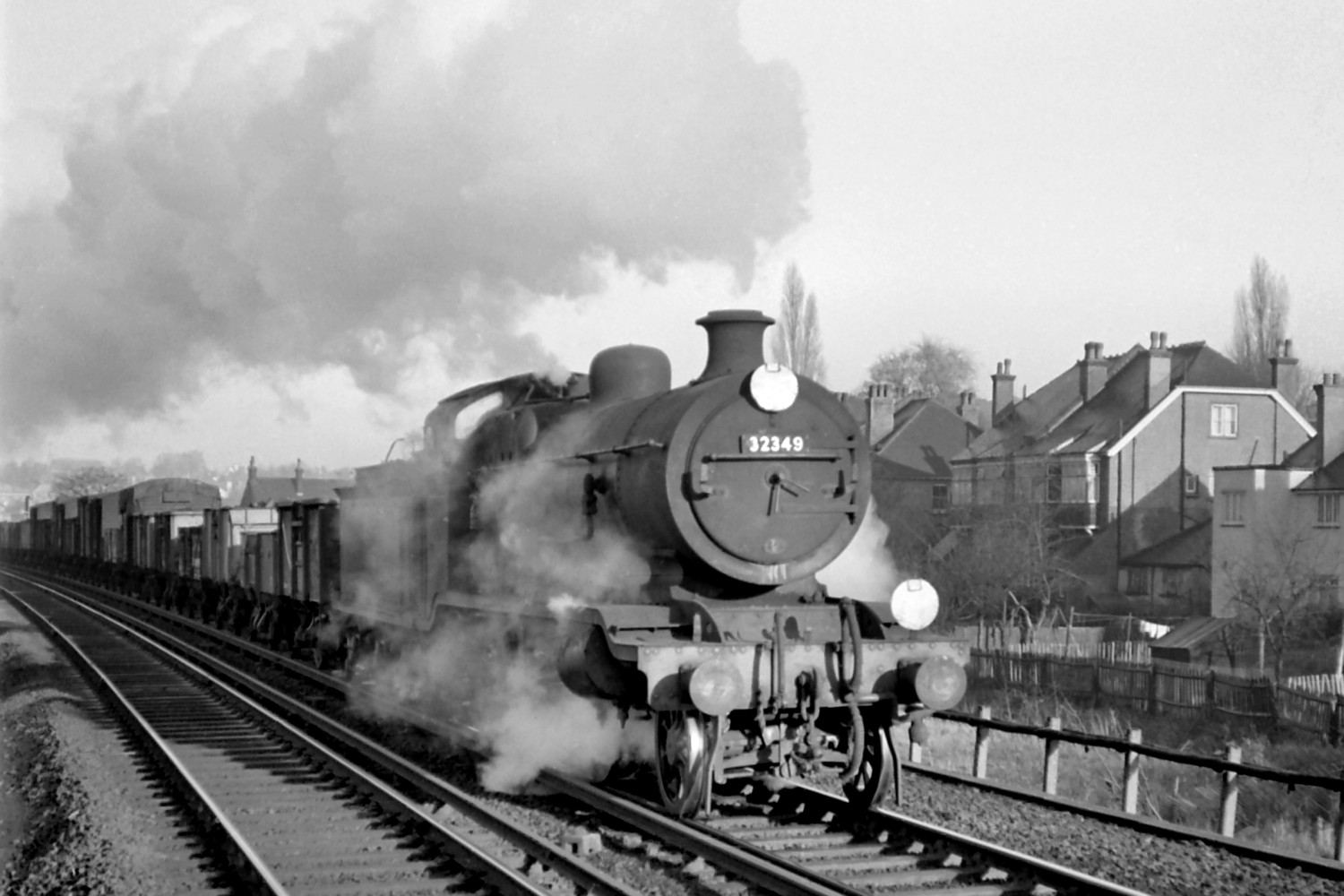

  • 32349
    With goods
    Another view of Nº32349, this time working a goods train, date and location not known.
    Photograph: Mike Morant collection.

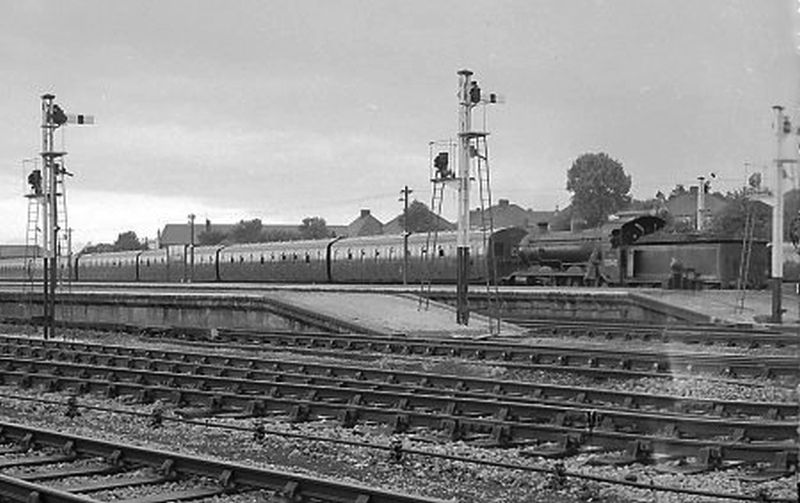

  • 32342
    Tattenham Corner
    A shiny Nº 32342, also seen on the previous photos, in an unusual situation. Photographed at Tattenham Corner, the engine appears to be buffered up to a 4-Sub EMU.
    Photograph: Mike Morant collection.

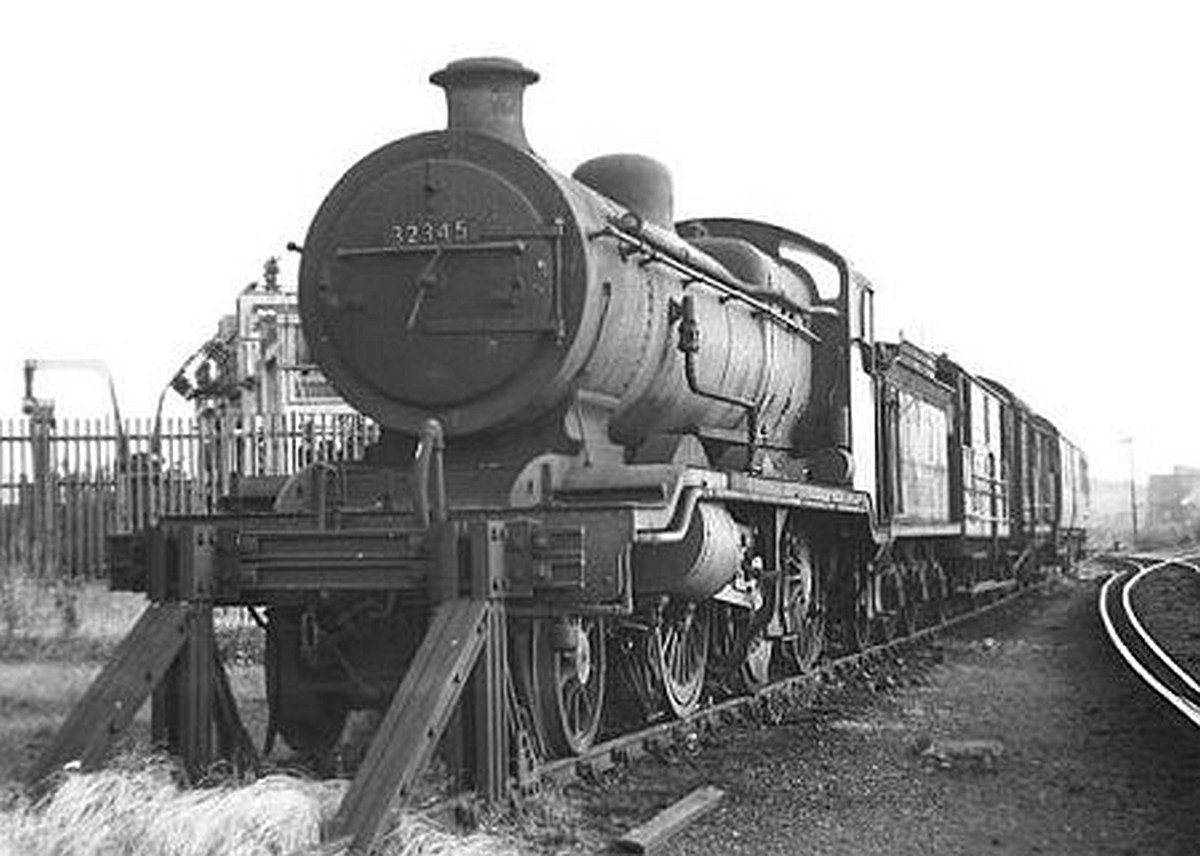

  • 32345
    Withdrawn
    Nº32345 once more, now in BR guise butminus coupling rods, presumably after withdrawal in December 1962.
    Photograph by Keith Harwood.

Technical Details

Introduced:
Driving Wheel:
Pony Wheel:
Length:s
Total Weight:
Water Capacity:
Cylinders (2):
Boiler Pressure:
Tractive Effort:
Coal Capacity:
Power Classification:
September 1913
5 ft 6 ins
3 ft 6 ins
57 ft 10 ins
105 tons 5 cwt
3,940 gals
21 in x 26 in
170 lb sq in
25,100 lb
4 tons
4-P/5-F

Data

LBSC Nº
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
SR Nº #
2337
2338
2339
2340
2341
2342
2343
2344
2345
2346
2347
2348
2349
2350
2351
2352
2353
BR Nº
32337
32338
32339
32340
32341
32342
32343
32344
32345
32346
32347
32348
32349
32350
32351
32352
32353
Built
Sep 1913
Dec 1913
Mar 1914
Jun 1914
Nov 1914
Oct 1916
Nov 1916
Dec 1916
Dec 1916
Dec 1916
Dec 1920
Dec 1920
Dec 1920
Dec 1920
Jan 1921
Feb 1921
Mar 1921
Withdrawn
Dec 1962
Dec 1962
Nov 1962
Dec 1962
Dec 1962
Dec 1962
Dec 1962
Nov 1962
Dec 1962
Nov 1962
Dec 1962
Nov 1962
Nov 1962
Nov 1962
Nov 1962
Nov 1962
Dec 1962

# Between 1923 and 1928 SR numbers were the LBSC numbers with the added prefix 'B'
