Introduced by Bachmann in 1993, BR(S) modellers could be
justifiably pleased with the arrival at long last of a range of 4mm scale ready
to run Bulleid coaches.
The bodyside captures the continuous curve of the prototype well and includes details such as the clips for holding the destination boards on the coach sides. The riveted window frames however appear in the reviewer's opinion to be too prominent. Unfortunately the window glazing is not flush (South Eastern Finecast do manufacture flush glazing packs for these coaches, but from all accounts they are slightly fiddly to fit, and you either like the effect achieved with this method or you don't). The moulded door handles and grab rails are neatly picked out in brass colour paint. The roof nicely represents the canvas style roof with rainstrips, vents and guards' periscopes where appropriate and correctly captures the characteristic Bulleid transition between roof and bodyside with a very shallow gutter The bogies are nicely moulded representations of the SR standard 8-foot steam stock type (the early production models had the tension lock coupling moulded as part of the bogie, but this was later changed to the newer slimline coupling that clips into the bogie). It is also worth noting that these bogies are usefully available as a spare part. However now that Bachmann have excelled themselves with the level of detail on the subsequently introduced MkIs such as close coupling, flush glazing, separate water tank filer pipes / end handrails and finer underframe detail, it does leaves the Bulleid range slightly lacking. Don't forget - third class was abolished in 1956, with the third class stock becoming second class. The Bachmann range comprises of four coach types namely: |
1. BTK/BSK 2. TK/SK 3. CK 4. TO/SO |
Corridor/Open Brake Third/Second to SR Diagram 2123 Corridor Third/Second to SR Diagram 2019 Corridor Composite to SR Diagram 2318 Third/Second Open to SR Diagram 2017 |
![]() |

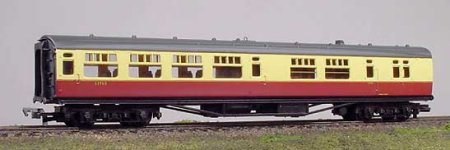

Bachmann Bulleid BTK/BSK in Crimson and Cream |
The Bachmann Bulleids are of the variety with the deeper 15" deep sliding vents introduced under British Railways commencing in 1949 as opposed to the Southern Railway built examples which had only 10" deep sliding vents. Note that the SR Diagram numbers refer to the internal layouts and not external detail differences. For pictures of actual Bulleid coaches click here. |
![]() |

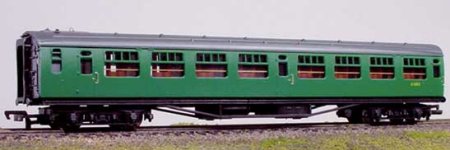

Bachmann Bulleid TK/SK in Green |
Versions are available in either SR Green (slightly darker version of Malachite) or Crimson and Cream. The Corridor Composite in green has been available either with or without the later applied yellow strip at cantrail level to indicate the first class section as applied after 1963. |
![]() |

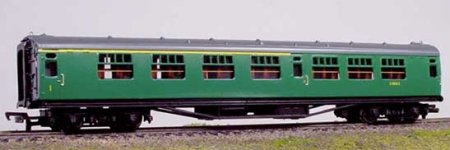

Bachmann Bulleid CK in Green |
The sets that can be accurately made up from the Bachmann range are sets 80 - 94, 767 - 769 and 830 - 849, although they are also very close to sets 850 - 865 (which had longer water tanks and LMS switchgear on the underframe). |
![]() |

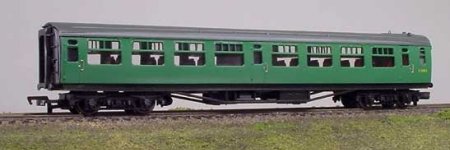

Bachmann Bulleid TO/SO in Green |
The Third/Second Opens were not originally included in any fixed sets and were used as 'loose' coaches to strengthen trains when required. |
3 Coach Sets 'L' (London - Dover - Ramsgate -
Margate) Introduced in 1950 made up from an order for 'Loose' Coaches. Livery from new was Crimson and Cream followed by SR Green. |
767 | 768 | 769 | |
BTK/BSK | 3950 | 3952 | 3954 |
CK | 5878 | 5879 | 5880 |
BTK/BSK | 3951 | 3953 | 3955 |
After 1955 these were working Oxted line services and Set 767 was strengthened to 8 Coaches (with the addition of a FK and 4 SKs). In 1959 sets 768 and 769 were transferred for Waterloo - West of England services. |
Four Coach Sets 'N' (London - Dover - Ramsgate -
Margate) Introduced in 1949 in Malachite Green with no ownership branding (set 83 was given an 's' prefix) followed by SR Green. |
80 | 81 | 82 | 83 | 84 | 85 | 86 | 87 | 88 | 89 | 90 | 91 | 92 | 93 | 94 | |
BTK/BSK | 4011 | 4013 | 4015 | 4017 | 4019 | 4021 | 4023 | 4025 | 4027 | 4029 | 4031 | 4033 | 4035 | 4037 | 4039 |
TK/SK | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
CK | 5823 | 5824 | 5825 | 5826 | 5827 | 5828 | 5829 | 5830 | 5831 | 5832 | 5833 | 5834 | 5835 | 5836 | 5837 |
BTK/BSK | 4012 | 4014 | 4016 | 4018 | 4020 | 4022 | 4024 | 4026 | 4028 | 4030 | 4032 | 4034 | 4036 | 4038 | 4040 |
After June 1959 Sets 89/90 were allocated to London - East Grinstead - Tunbridge Wells West services. |
Sets 80 and 86 were strengthened to 7 coaches in 1959 with the addition of a further CK and two SOs from the 'Loose' pool. |
80 | 86 | |
BSK | 4011 | 4023 |
SK | 26 | 32 |
CK | 5823 | 5829 |
CK | 5884 | 5886 |
SO | 1477 | 1482 |
SO | 1479 | 1487 |
BSK | 4012 | 4024 |
They were further strengthened to 10 coach sets in 1961 and moved to the Western section with the addition of 3 SKs each (45,103 & 104 in Set 80 and 1932,1933 & 1934 in Set 86). |
5 Coach Sets (Waterloo - Salisbury - West of England
& Waterloo - Bournemouth - Weymouth) Introduced in 1950, originally worked as 3 coach sets in winter, strengthened to 5 Coach sets for the summer by the addition of the two Corridor Seconds. After June 1953 only Sets 830 to 833 operated as seasonal 3 coach sets the rest staying as 5 Coach sets all year round. Livery from new was Crimson and Cream followed by SR green. Formations as at June 1962. |
830 | 831 | 832 | 833 | 834 | 835 | 836 | 837 | 838 | 839 | |
BSK | 3971 | 3973 | 3975 | 3977 | 3979 | 3981 | 3983 | 3985 | 3987 | 3989 |
SK | 114 | 116 | 118 | 120 | 123 | 125 | 127 | 129 | 57 | 59 |
CK | 5848 | 5849 | 5850 | 5851 | 5852 | 5853 | 5854 | 5855 | 5856 | 5857 |
SK | 115 | 117 | 119 | 121 | 124 | 126 | 128 | 130 | 58 | 60 |
BSK | 3972 | 3974 | 3976 | 3978 | 3980 | 3982 | 3984 | 3986 | 3988 | 3990 |
840 | 841 | 842 | 843 | 844 | 845 | 846 | 847 | 848 | 849 | |
BSK | 3991 | 3993 | 3995 | 3997 | 3999 | 4001 | 4003 | 4005 | 4007 | 4009 |
SK | 61 | 63 | 65 | 67 | 69 | 71 | 73 | 75 | 77 | 79 |
CK | 5858 | 5859 | 5860 | 5861 | 5862 | 5863 | 5864 | 5865 | 5866 | 5867 |
SK | 62 | 64 | 66 | 68 | 70 | 72 | 74 | 76 | 78 | 80 |
BSK | 3992 | 3994 | 3996 | 3998 | 4000 | 4002 | 4004 | 4006 | 4008 | 4010 |
Text supplied by: Graham R 'Muz' Muspratt.
Bibliography: |
All photographs are copyright Graham R 'Muz' Muspratt>
